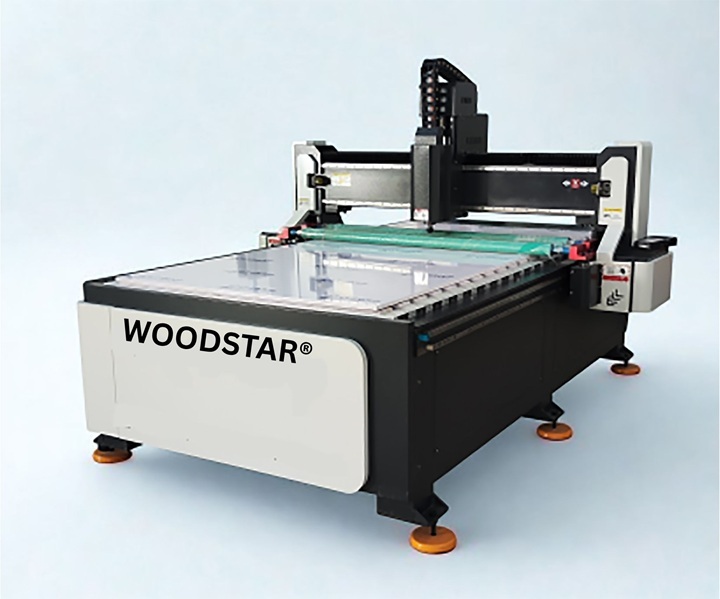

woodstar cnc router wsr-1325 stepper single carving machine
working area: 1500 x 2500 x 300 mm
heavy weld tube structure
hqd air cooled spindle 24000 rpm
invt taiwan vfd
richauto a11 cnc control system
yako stepper motor and drive with brake system
rapid speed 25,000 mm / min
working speed 15,000 mm / min
taiwan 20 mm high load linear rail and bearing
taiwan tbi 25mm z ball screw
german lapp cables
1.25 m helical harden rack and pinion.
timing belt gearbox
1.5 mm standard t-slot aluminium with hard pvc
support program: g codes and m codes
software: artcam and v carve aspire
lubrication: manual
voltage 220v, single phase 50hz
standard tools and accessories include allen key toolbox, ball nose tools 6 nos, spindle spanner set, 2 collet, collet nut, heavy door clamp 10 pcs, 2 sensors, servo stabilizer
12,000+ designs (800 gb)
gross weight 1200 kgs
total power 9.0 hp
